• Model NO.：315x2.5x32mm 220T HSS M35
• Type：HSS Saw Blade
• Hardness：HRC62-65
• Tooth Grinding：CNC Tooth Grinding Machine
• Heatment Treatment：Salt Bath
• Tooth Number：Z=220
• Material：High Speed Steel
• Thickness：2.0mm,2.5mm
• Bore：32mm,40mm
• Delivery Time：4-6 Weeks After Order
• Application：Tubes & Profiles Cutting.
• Transport Package：10PCS Per Carton
• Specification：315 x 2.5 x 32mm Z=220BW
• Trademark：FUWEISI, BOSS CUT
• Origin：Germany Material and Technology.
• HS Code：8202399000
• Production Capacity：600, 000PCS Per Year

Basic Info.

Model NO. 315x2.5x32mm 220T HSS M35 Type HSS Saw Blade Hardness HRC62-65 Tooth Grinding CNC Tooth Grinding Machine Heatment Treatment Salt Bath Tooth Number Z=220 Material High Speed Steel Thickness 2.0mm,2.5mm Bore 32mm,40mm Delivery Time 4-6 Weeks After Order Application Tubes & Profiles Cutting. Transport Package 10PCS Per Carton Specification 315 x 2.5 x 32mm Z=220BW Trademark FUWEISI, BOSS CUT Origin Germany Material and Technology. HS Code 8202399000 Production Capacity 600, 000PCS Per Year

Product Description

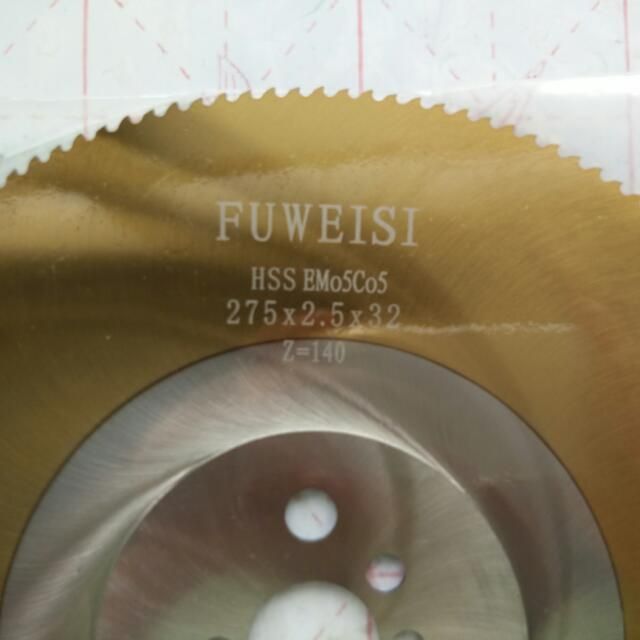

FUWEISI brand HSS TIN PVD coated saw blade for cutting steel bubes & profiles.

Type:
TiN PVD PLUS coated

Tooth form:
A/AW/B/BW/Hz

Diameter:
200mm; 225mm, 275mm, 300mm,
315mm, 350mm, 370mm, 400mm, 425mm, 450mm,500mm,550m,600mm

Thickness:
1.2mm; 1.6mm, 2.0mm, 2.5mm, 3.0mm

Bore diameter:
254.mm ,32mm, 38mm, 40mm, 50mm

Technical data of TiN coating:
Colour: Gold
Process: PVD
Hardness: 2500HV
Friction: 0.4
Thickness: 1-4mm.
Max cutting temperature: 600 degree.

Operation:

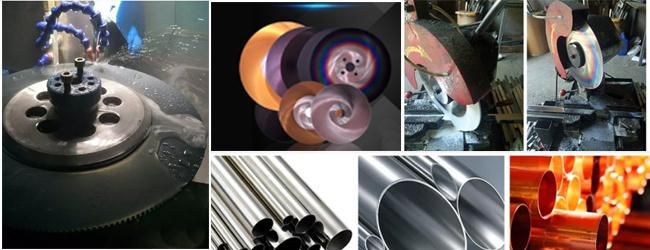

Structural steel
Alloyed steels
Steel pipes and profiles
Pipes and profiles out non ferrous metals

Technical recommendation:
Raising of the coating hardness by reducing the friction
Universal coating for better sawblade life
50-100%higher speed and feed rates
Prevention of side pick-UPS

Production is based on DIN standards 1836, 1837, 1838 and 1840, extended by the refined "FUWEISI" manufacturing standards. The delivery program consists of a range of standard sawblades which can be delivered from stock and a range of special sawblades to be produced to customer specifications.

The HSS TIN sawblades are supplied as standard in high speed steel grade M2 = DIN 1.3343. It suits for the cutting of the materilas like stainless steel, iron pipe, steel pipe, etc.

All the products haven been enjoying an excellent reputation in the world market for it's competitive price and excellent quality.



We have been exporting our saw blades to more than 20 countries and regions.
