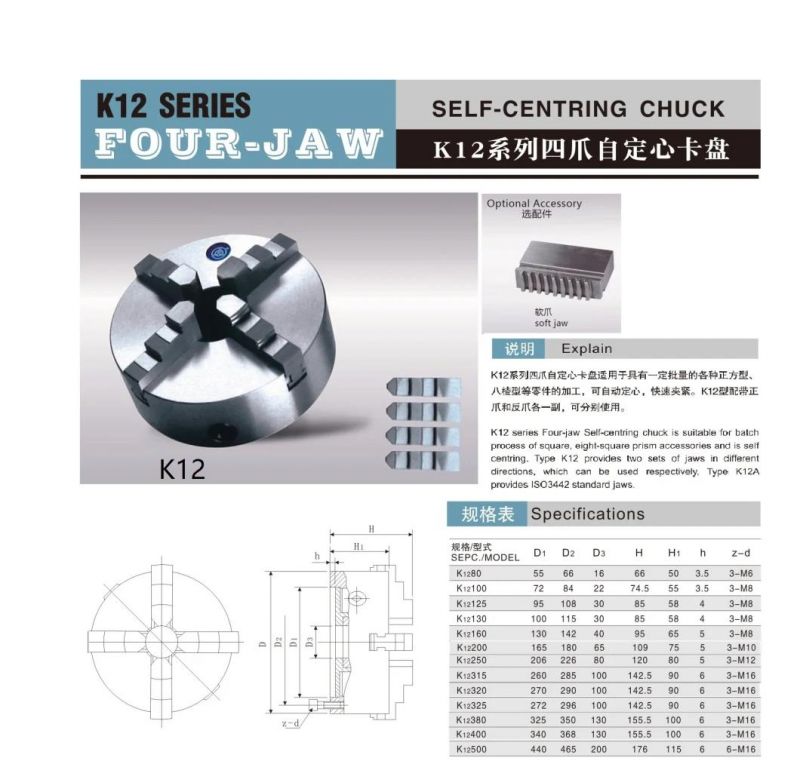

• Model NO.：K12 250
• Type：Four-Jaw Chuck
• Description：4 Jaw Plain Back Mounting Lathe Chuck
• Clamping Force：37kn
• Clamping Range：6-250mm
• Through Hole：80mm
• Transport Package：Pylwood Case, Carton Packaging
• Specification：ISO Standard, K12 250
• Trademark：YUANPAI
• Origin：China
• HS Code：84662000
• Production Capacity：180000 Sets Per Year

Basic Info.

Model NO. K12 250 Type Four-Jaw Chuck Description 4 Jaw Plain Back Mounting Lathe Chuck Clamping Force 37kn Clamping Range 6-250mm Through Hole 80mm Transport Package Pylwood Case, Carton Packaging Specification ISO Standard, K12 250 Trademark YUANPAI Origin China HS Code 84662000 Production Capacity 180000 Sets Per Year

Product Description

Hardened and ground working surfaces prolong life while ensuring sustained accuracy and repeatability.
Balanced scroll plate allows higher rotation speeds without excess vibration.
Mounted on the machine tool spindle from the back of the chuck by using an adapter plate.

YUANPAI continues to manufacture our famous high quality Standard and Precision Lathe Chucks for customers with demanding applications around the world.

Accessory: safety wrench,stud bolt,pinion,soft 2-piece jaws,hard 2-piece reversible jaws,soft top jaws,hard top jaws,soft solid jaws,hard inside solid jaws, hard outside solid jaws,hard master jaws,scroll plate,adapter for lathe chuck.
