HRC 65 4 Flutes Carbide Square End Mill Cutter
Changzhou Hongjian Tools Co., Ltd.- Coating：Blue Nano
- Tooth Form：4f
- Tooth Space：Sparse Tooth
- Structure：Integral
- Material：Tungsten Steel
- Type：Face Milling Cutter
Base Info
- Model NO.：Square End Mill
- Condition：New
- Shank Diameter：4-20mm, Customized
- Flute：2, 4 Flutes, Customized
- Helix Angel：35 Degree, Customized
- Chemical Composition：6%-12% Co-Wc
- Cutting Diameter：1-20mm, Customized
- Length：50-150mm, Customized
- Grain Size：0.3-0.5um
- Transport Package：Air
- Specification：SGS
- Trademark：Hiboo
- Origin：Changzhou Jiangsu China
- HS Code：8207709000
- Production Capacity：50000PCS,Mouth
Description
SpecificationsDiameter(d) Radius(R) Cutter length(l) Overall length(L) Shank diameter(D) ∮1 3 50 ∮4 ∮1.5 4 50 ∮4 ∮2 6 50 ∮4 ∮2.5 8 50 ∮4 ∮3 8 50 ∮4 ∮3.5 10 50 ∮4 ∮4 11 50 ∮4 ∮4 15 75 ∮4 ∮4 20 100 ∮4 ∮4.5 13 50 ∮6 ∮5 13 50 ∮6 ∮5 20 75 ∮6 ∮5 30 100 ∮6 ∮5.5 15 50 ∮6 ∮6 15 50 ∮6 ∮6 20 75 ∮6 ∮6 30 100 ∮6 ∮6 20 60 ∮8 ∮8 20 60 ∮8 ∮8 25 75 ∮8 ∮8 35 100 ∮8 ∮9 25 75 ∮10 ∮10 25 75 ∮10 ∮10 40 100 ∮10 ∮11 30 75 ∮12 ∮12 30 75 ∮12 ∮12 45 100 ∮12 ∮14 35 100 ∮14 ∮16 40 100 ∮16 ∮18 45 100 ∮18 ∮20 45 100 ∮20 Notes:If there are special requirements,can be customized.
Why Choose Hiboo Tools
Several years' professional producting and exporting experience
Advanced RD department meet your special demands

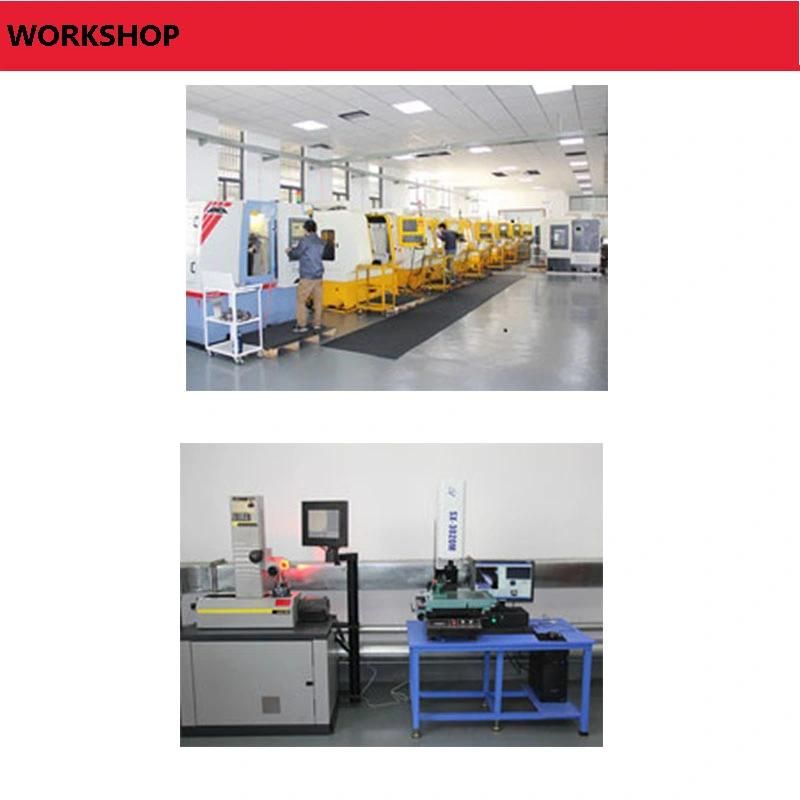

High precision CNC machines,high standard and strict inspection
Custom demand are welcomed ,OEM and ODM Service
All payment terms supported
Fast delivery time and Convenient Transportations
More than 2000 products are available
For your suggestions or complaints,We will handle them Soonest.
Why Choose Hiboo Tools
Several years' professional producting and exporting experience
Advanced RD department meet your special demands
High precision CNC machines,high standard and strict inspection
Custom demand are welcomed ,OEM and ODM Service
All payment terms supported
Fast delivery time and Convenient Transportations
More than 2000 products are available
For your suggestions or complaints,We will handle them Soonest.
