• Model NO.：All sizes
• Application：Wood Cutters, Tobacco Cutting, Metal Cutting
• Materials：100% Tungsten Carbide
• Process Usage：Metal-Cutting CNC Machine Tools
• Standard：ISO, SGS, Ect
• Condition：New
• Numerical Control：CNC,Mnc
• Delivery Time：7-15days
• Transport Package：Standard Box
• Specification：33x23x19cm
• Trademark：GW
• Origin：Zhuzhou
• HS Code：82077090
• Production Capacity：500000PCS,Month

Basic Info.

Model NO. All sizes Application Wood Cutters, Tobacco Cutting, Metal Cutting Materials 100% Tungsten Carbide Process Usage Metal-Cutting CNC Machine Tools Standard ISO, SGS, Ect Condition New Numerical Control CNC/Mnc Delivery Time 7-15days Transport Package Standard Box Specification 33x23x19cm Trademark GW Origin Zhuzhou HS Code 82077090 Production Capacity 500000PCS/Month

Product Description

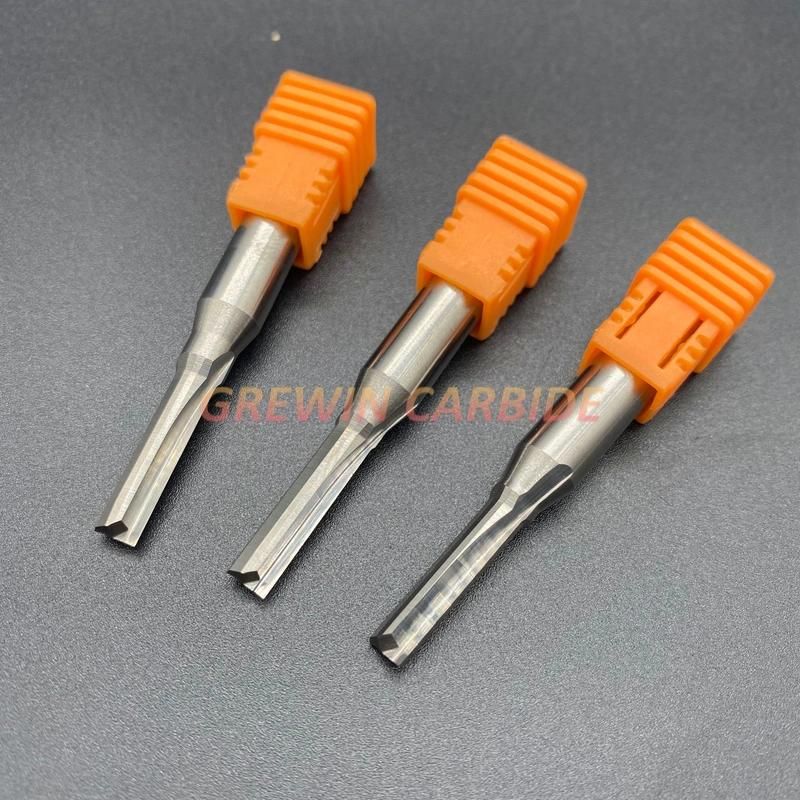

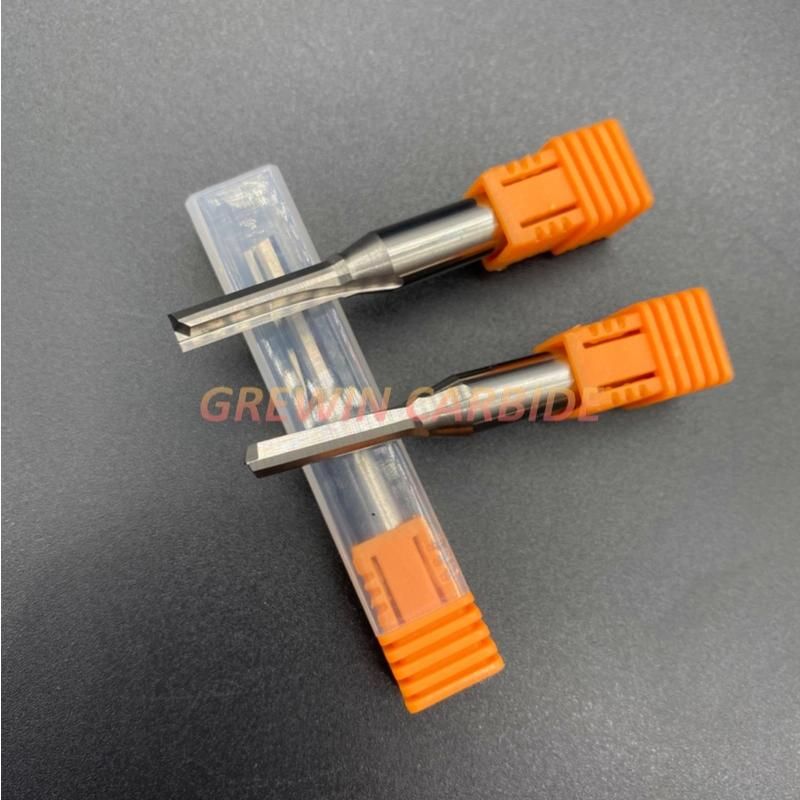

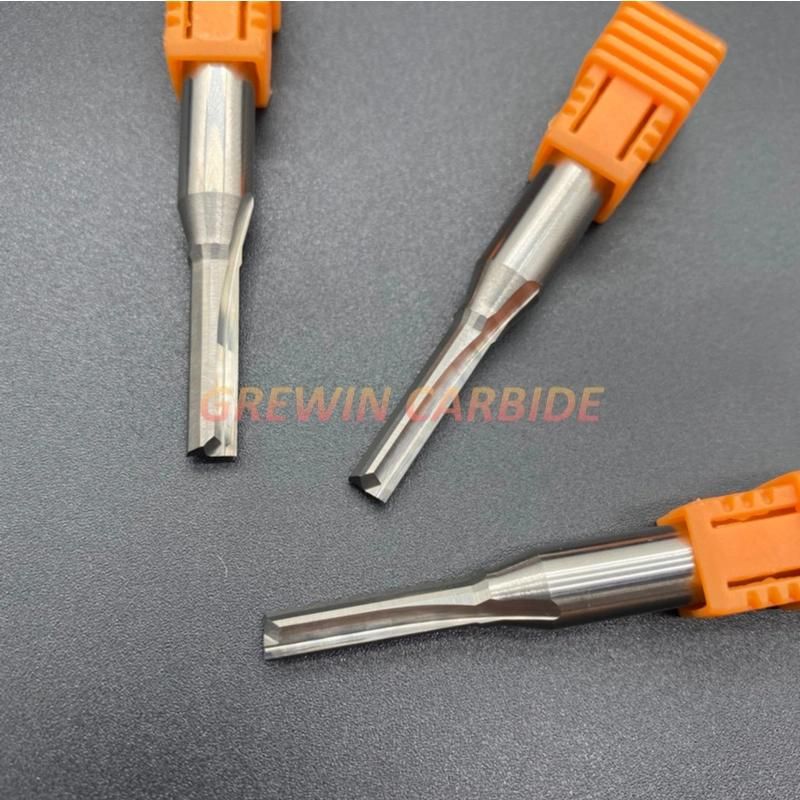

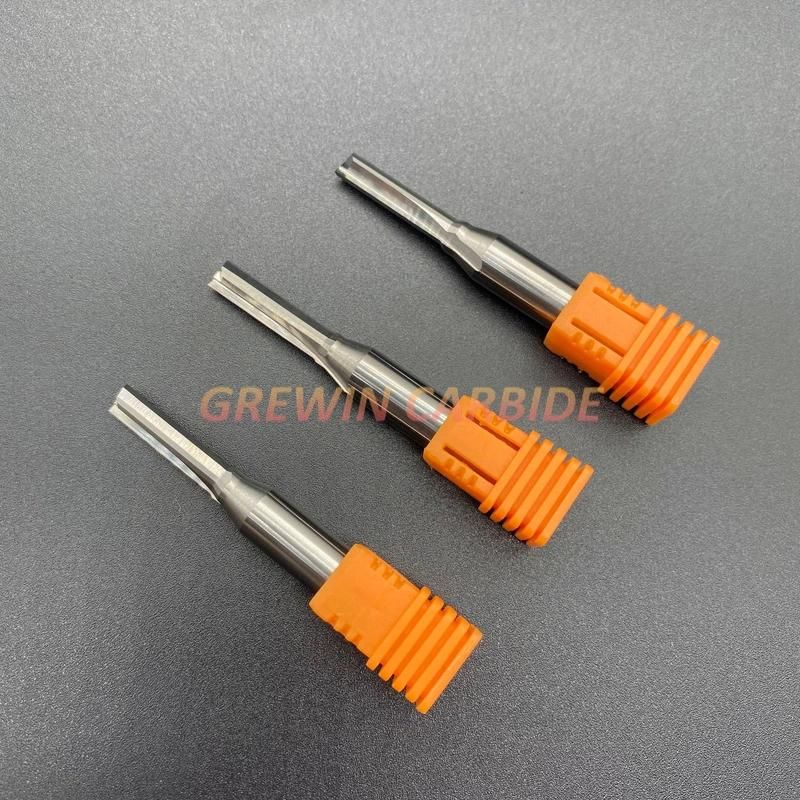

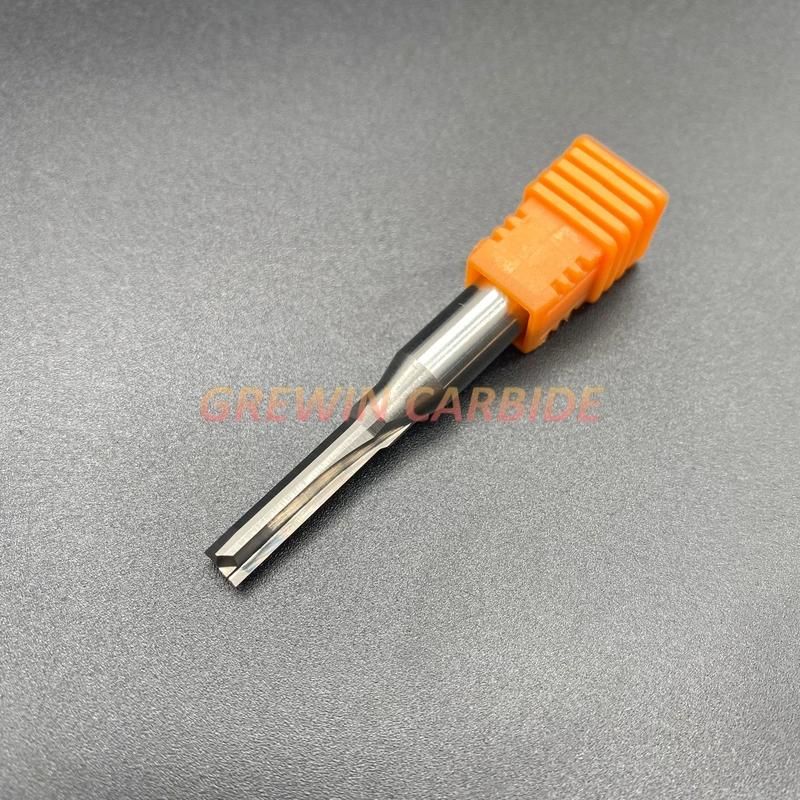

Carbide Compression Router Bits Double Spiral Bits for MDF Laminate Carving

The part of the bit closest to the tip is upcut and the other end is downcut. That is why it's called a compression router bit. It compresses the chips into the center of the bit.
Spiral router bits leave a clean edge on the top or bottom surface, depending on the direction of the cut. So we have up cut spiral router bits and down cut spiral router bits.

Compression spiral router bits are an excellent choice for woodworkers who must have a clean top and bottom surface, as they have a Up-Cut design on the tip of the bit and a Down-Cut design ground into the shank.
Designed to provide a smoother finished cut and router wood and wood composites where upward/ downward chip removal, long life and quality finish are desired. It's great for cutting openings in wood.


This makes it especially great for plywood, laminates and MDF when you need both the top and bottom edges clean. You just have to make sure that the piece of wood you are cutting is thick enough so that both ends of the bit have room to work. Both the top and bottom are cut perfectly clean.

Choose from our large variety of solid carbide spiral compression router bits below. They are widely used on CNC and other automatic routers as well as hand-held router and table-mounted portable routers.


Double Compression Router Bits sizes:

CED (mm)	CEL (mm)	SHK (mm)	OVL (mm)
3.175	12	3.175	40
3.175	17	3.175	45
3.175	22	3.175	50
3.175	25	3.175	55
3.175	32	3.175	65
4	12	4	45
4	17	4	50
4	22	4	55
4	25	4	60
5	12	5	50
5	17	5	50
5	22	5	55
6	10	6	50
6	12	6	50
6	17	6	50
6	22	6	55
6	25	6	60
6	28	6	65
6	35	6	80
8	20	8	60
8	25	8	60
8	35	8	80
8	45	8	90
10	25	10	60
10	35	10	80
10	45	10	90
12	35	12	90
12	45	12	100
12.7	35	12.7	90
12.7	45	12.7	100
12.7	55	12.7	110
16	45	16	110
16	55	16	120
16	75	16	140
20	45	20	100
20	75	20	150

We also supply single spiral compression router bits and triple spiral carbide compression router bits.
Every woodworker knows - the right router bit makes all the difference in creating great work. Choose the good bits makes the work become easy.












Grewin carbide waiting for your kindly inquiry.
