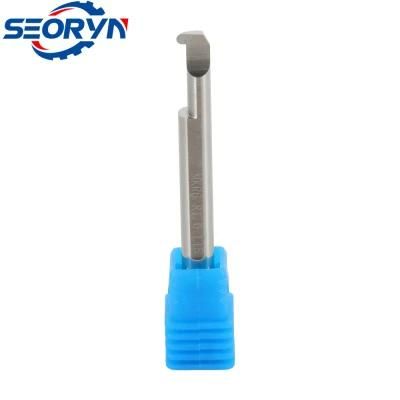

• Model NO.：D6-R1.0-L15
• Material：Cemented Carbide
• Type：Boring Turning Tool
• HRC：45-65 HRC
• Precision：High Precision
• Usage：Radius Grooving Process
• Transport Package：Plastic Box
• Trademark：Seoryn
• Origin：Changzhou
• HS Code：8207709000
• Production Capacity：15000
• Package size per unit product：17.50cm * 9.50cm * 11.50cm
• Gross weight per unit product：0.350kg

Basic Info.

Model NO. D6-R1.0-L15 Material Cemented Carbide Type Boring Turning Tool HRC 45-65 HRC Precision High Precision Usage Radius Grooving Process Transport Package Plastic Box Trademark Seoryn Origin Changzhou HS Code 8207709000 Production Capacity 15000

Packaging & Delivery

Package size per unit product 17.50cm * 9.50cm * 11.50cm Gross weight per unit product 0.350kg

Product Description

Quick Details

Place of Qrigin:	Jiangsu, China	Brand Name:	Seoryn
Model Number:	Standard	Type:	Boring Cutter
Material:	Solid Carbide	Product Name:	MKR Cemented  Carbide Thread Boring Cutters
Diameter:	D4-6mm	Hardness:	45-65HRC
MOQ:	10 pieces	Application:	Boring Process

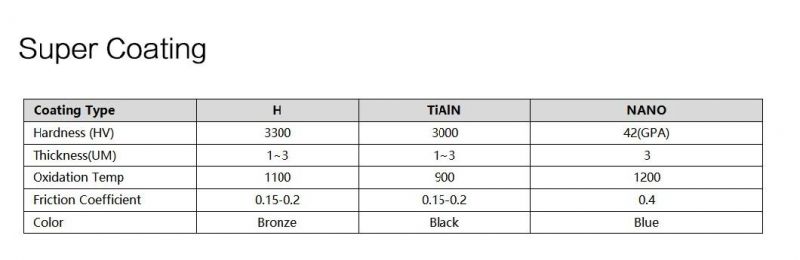

Coating:	TiAlN, Bule NANO	Delivery time:	7-10 days

MKR Series

Specification	D	L	L1	R	W	H	F	Min Working Diameter	Applicable Handle	Stock (standard)
4 R0.5 L10	4	51	10	0.5	1	1	1.7	4.1	NC1604-100
4 R0.75 L10	4	51	10	0.75	1.5	1	1.7	4.1	NC1604-100
5 R0.5 L15	5	51	15	0.5	1	1.2	2.3	5.1	NC1605-100
5 R0.75 L15	5	51	15	0.75	1.5	1.2	2.3	5.1	NC1605-100
5 R1.0 L15	5	51	15	1	2	1.2	2.3	5.1	NC1605-100
6 R0.5 L15	6	51	15	0.5	1	1.6	2.8	6.1	NC1606-100
6 R0.75 L15	6	51	15	0.75	1.5	1.6	2.8	6.1	NC1606-100
6 R1.0L15	6	51	15	1	2	1.6	2.8	6.1	NC1606-100
