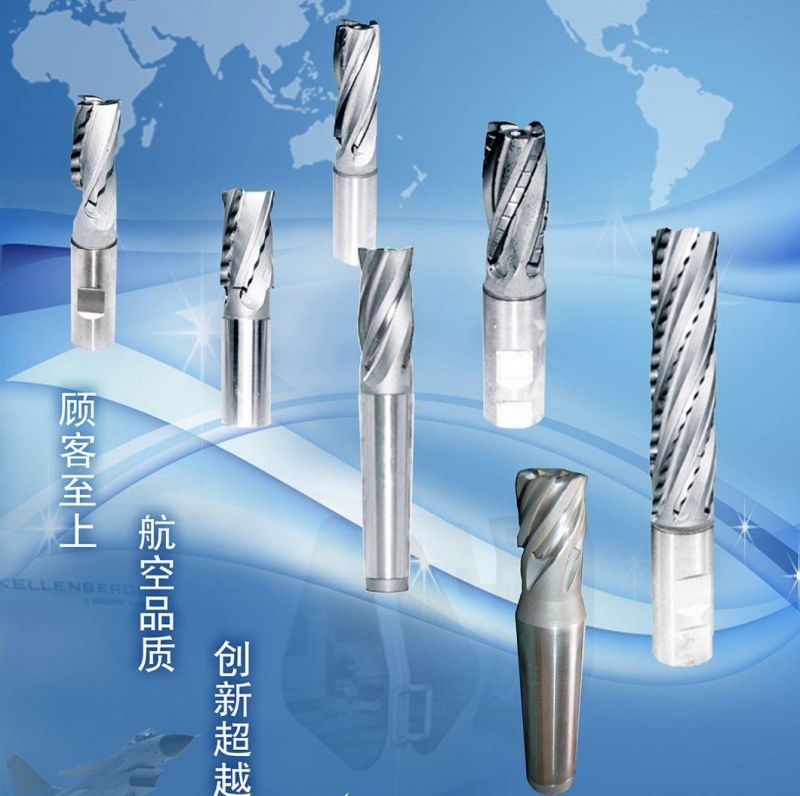

Brazed Carbide Roughing End Mills
Zhenjiang Scharp Machinery Tools Co., Ltd.- Coating：Uncoated
- Tooth Form：Spiral Tooth
- Tooth Space：Sparse Tooth
- Structure：Welding Tooth
- Material：Cemented Carbide
- Type：Cutter
Base Info
- Model NO.：mm or inch
- Size：16mm to 25mm
- Work Type：Cut off
- Transport Package：Plastic Box
- Specification：16mm to 25mm
- Trademark：stc
- Origin：Jiangsu
- HS Code：82077090
- Production Capacity：5000PCS,Month
Description
Basic Info.
Model NO. mm or inch Size 16mm to 25mm Work Type Cut off Transport Package Plastic Box Specification 16mm to 25mm Trademark stc Origin Jiangsu HS Code 82077090 Production Capacity 5000PCS/MonthProduct Description

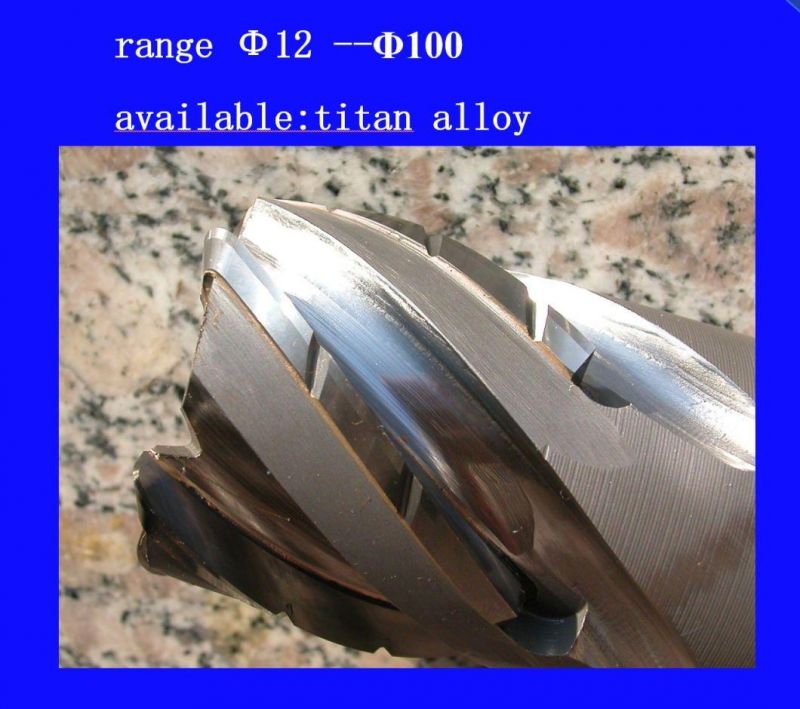

This roughing end mills with carbide tipped brazed.Helical angle=25 degree.

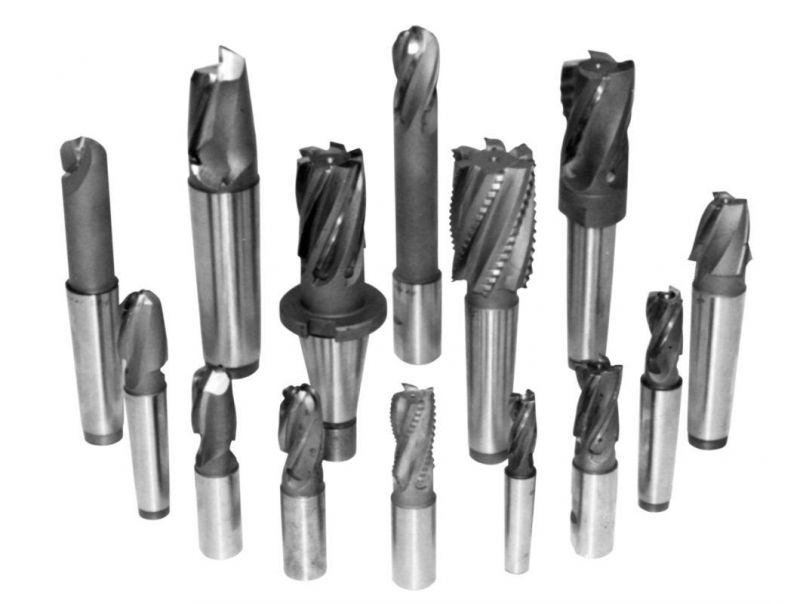

Straight shank, weldon shank, reforced shank, 7: 24 shank available.
3 flutes, 4 flutes available.
Cut faster, longer and more quietly than conventional end mills;
Efficient distribution of cutting temperature;
Maximum cutting edge life;
Minimum chip recutting;
Reduces machine time. Longer tool life.
| D | d | l | L | z |
| 16 | 16 | 19 | 79 | 3 |
| 16 | 16 | 32 | 92 | 3 |
| 18 | 16 | 19 | 79 | 3 |
| 18 | 18 | 32 | 92 | 3 |
| 20 | 20 | 22 | 88 | 3 |
| 20 | 20 | 38 | 104 | 3 |
| 22 | 20 | 22 | 88 | 3 |
| 25 | 25 | 26 | 102 | 3 |
| 25 | 25 | 46 | 121 | 3 |
