• Model NO.：mm and inch
• Size：12mm to 28mm
• Standards：K
• Style：Universal Tool
• Cutting Process：Milling Cutter
• Work Type：Cut off
• Transport Package：Plastic Box
• Specification：12mm to 28mm
• Trademark：stc
• Origin：Jiangsu
• HS Code：82077090
• Production Capacity：10000PCS ,Month

Basic Info.

Model NO. mm and inch Size 12mm to 28mm Standards K Style Universal Tool Cutting Process Milling Cutter Work Type Cut off Transport Package Plastic Box Specification 12mm to 28mm Trademark stc Origin Jiangsu HS Code 82077090 Production Capacity 10000PCS /Month

Product Description

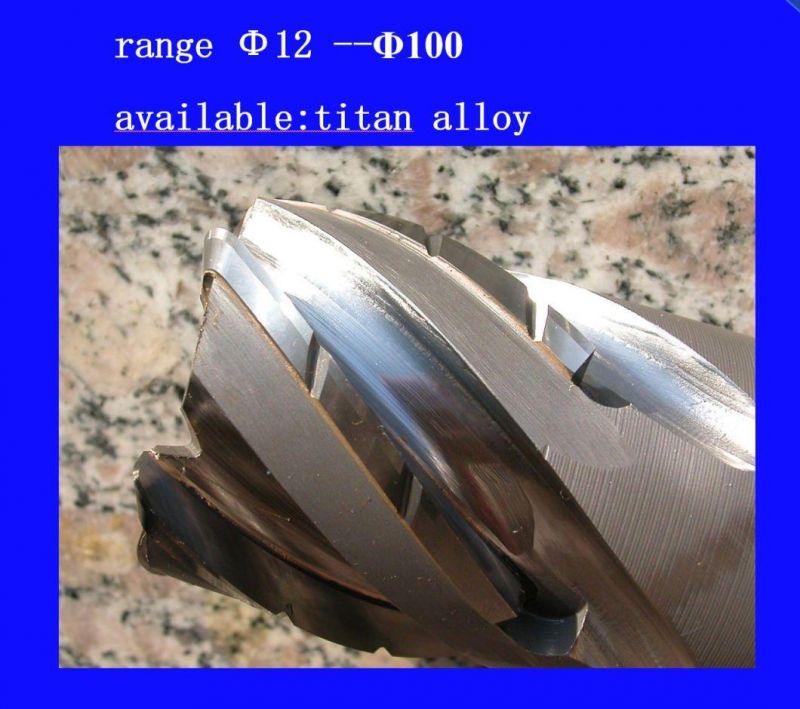

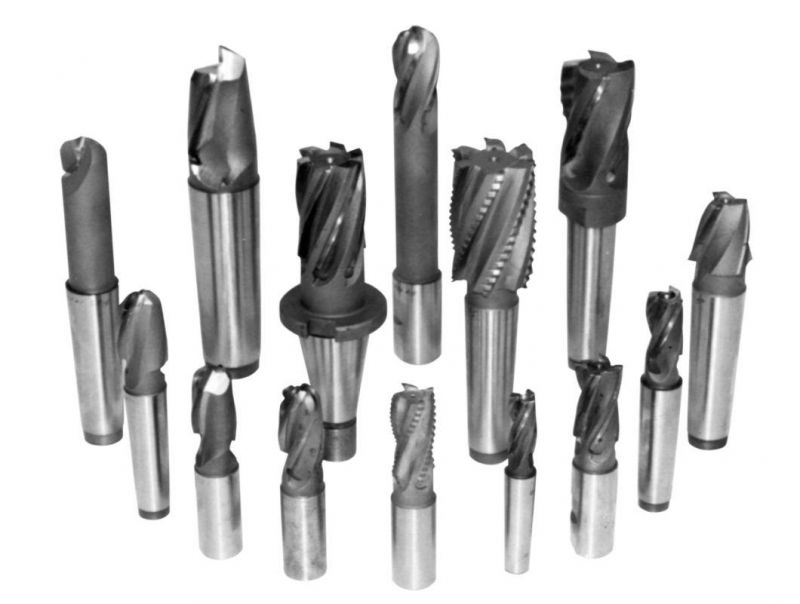

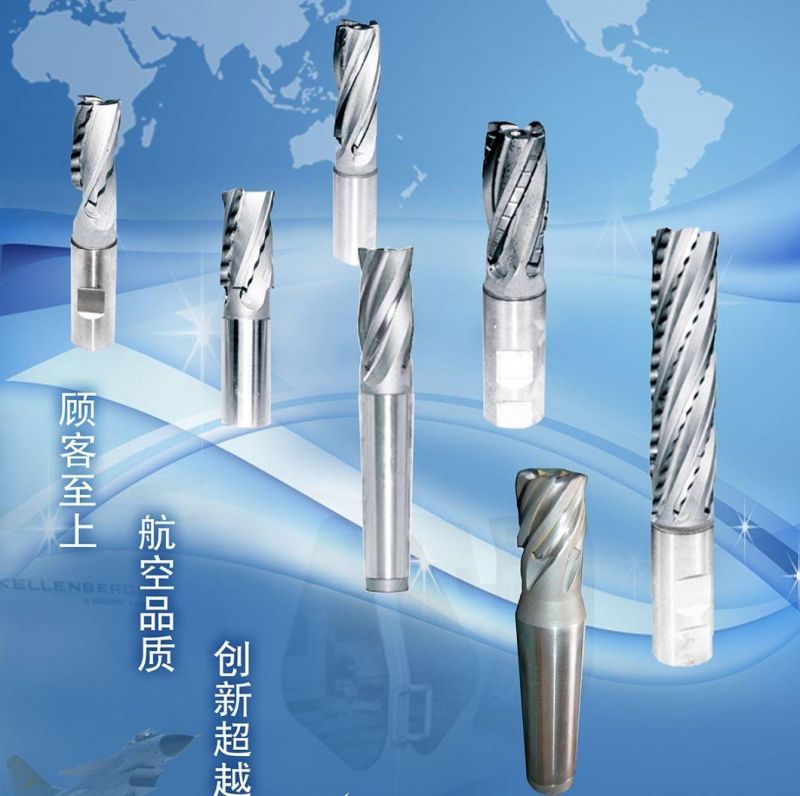

25º Or 30º Right Spiral Flutes Carbide Tipped end mills:

1) 25º With 3 helical flute.

2) 30º With 4 helical flute.

Straight shank, weldon shank, both available.

Special grades of carbide brazed to shank.

Radial edged for longer tool life.

D	d	l	L	Z	C
12	12	19	76	3	0.5
12	12	26	83	3	0.5
14	14	19	76	3	0.5
14	14	26	83	3	0.5
16	16	19	79	3	0.5
16	16	32	92	3	0.5
18	16	19	79	3	0.5
18	18	32	92	3	0.5
20	20	22	88	3	0.5
20	20	38	104	3	0.5
22	20	22	88	3	0.5
22	20	38	104	3	0.5
25	25	26	102	3	0.5
25	25	45	121	3	0.5
28	25	45	121	3	0.5
