• Model NO.：fxc-032
• Surface：Ticn,Tin,Tialn,Uncoated
• End Mill Flute Diameter：D0.5-D30mm
• Flutes Number：2, 3, 4
• Trial Order：Accepted
• Work Piece：HRC45, 55, 60, 65
• Overall Length：50-150mm
• Size：Customers Requirements
• Feature：Metal Plating
• Delivery Time：7-15 Working Days
• Packing：Carton
• Transport Package：1 PC in a Plastic Tube, 10 PCS Per Group
• Trademark：FXC
• Origin：Changzhou, Jiangsu
• HS Code：8205590000
• Production Capacity：1000000

Basic Info.

Model NO. fxc-032 Surface Ticn/Tin/Tialn/Uncoated End Mill Flute Diameter D0.5-D30mm Flutes Number 2, 3, 4 Trial Order Accepted Work Piece HRC45, 55, 60, 65 Overall Length 50-150mm Size Customers Requirements Feature Metal Plating Delivery Time 7-15 Working Days Packing Carton Transport Package 1 PC in a Plastic Tube, 10 PCS Per Group Trademark FXC Origin Changzhou, Jiangsu HS Code 8205590000 Production Capacity 1000000

Product Description

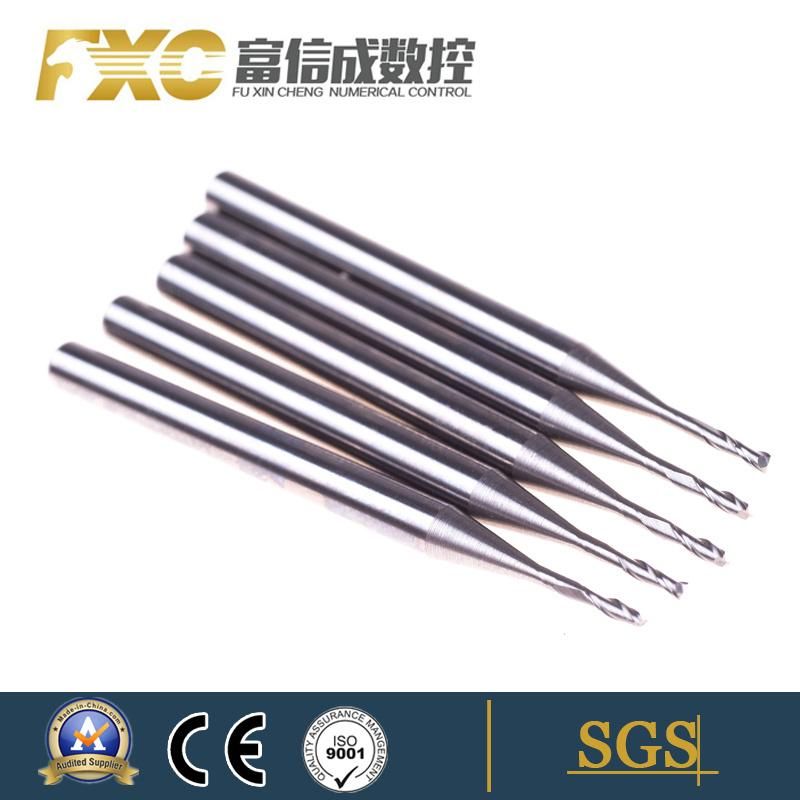

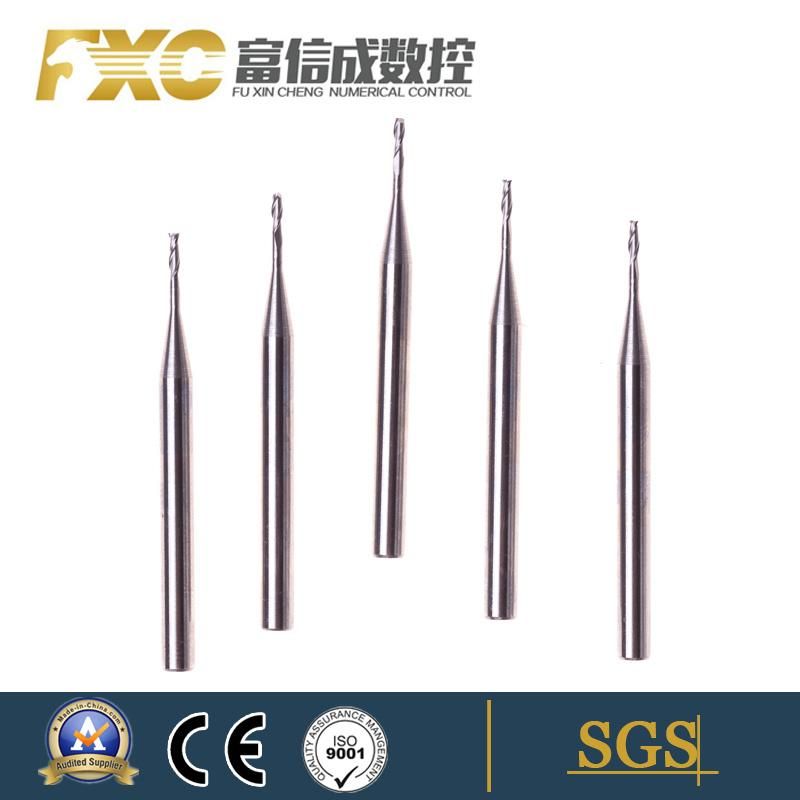

Durable Carbide Long Neck End Mill Aluminum Milling Cutter

Features:
1.All dimension is fixed by our norm and also accepted non standard order;
2.Tolerance of dc 0/-0.15;
3.Tolerance of shank h6;
4.Cutting edge to center with tip angle;
5.Corner radius R±0.005,others ±0.015,dc<=D6 Helix angel 35°,dc>D6 Helix angle 45°;
6.Helix angle 35°;
7.Shank taper angel β=16°.
 Product Specification

diameter	length1	length2	shank diameter	full length
0.5	0.7	2	4	50
0.6	0.9	2	4	50
0.8	1.2	4	4	50
1	1.5	4	4	50
1.2	1.8	6	4	50
1.4	2.1	6	4	50
1.5	2.3	6	4	50
1.6	2.4	6	4	50
1.8	2.7	6	4	50
2	3	6	4	50
2.5	3	8	4	50
3	4.5	8	6	50

1.Are you manufacturer? Do you have factory?
 We are Professional manufacturer ,we have more than 5 years experience in this field.

2.Does free shipping is possible?
We don't offer free shipping service, but we will give you some discount if you buy large quantity products.

3.Can you send products to our Forwarder in China?
Yes, if you have forwarder in China, i will glad to send products to him/her.

4.Do you make OEM?
Yes, we do. We have laser machine, can laser your logo and sizes on the body of milling cutter, also can print labels.

5.How about the delivery time?
According to the sizes and quantity, delivery time is different. Usually be 5~10 days. We can tell you exact inventory state if you need.

6.Can you produce carbide Special Tool ?
Yes We can. From 2013 year. Our factory main market is from standard end mills to special tools. Special tool according your drawing and sample.
