• Model NO.：CH25-33
• Type：Cutter
• Size：Many Sizes Avaiable
• Service：OEM
• Teeth Pattern：Cross Bevel Teeth with
• Suitable Machines：Rip Saw, Gang Rip Saw
• No.of Scrapers：2+2
• Work Type：Cut off
• Material：65mn or 75cr1
• Transport Package：White Box
• Specification：tuv
• Trademark：CH
• Origin：Zhejaing, China
• HS Code：8202
• Production Capacity：200000PCS,Month

Basic Info.

Model NO. CH25-33 Type Cutter Size Many Sizes Avaiable Service OEM Teeth Pattern Cross Bevel Teeth with Suitable Machines Rip Saw, Gang Rip Saw No.of Scrapers 2+2 Work Type Cut off Material 65mn or 75cr1 Transport Package White Box Specification tuv Trademark CH Origin Zhejaing, China HS Code 8202 Production Capacity 200000PCS/Month

Product Description

Tct Saw Blades with Rakers for Wood
1. High performance
2. Long cutting life
3. Direct factory

More information about: TCT saw blades with rakers for wood

Rakers as bellow:
Advantage:
1. Suitable for thick, higher humidity wood cross cutting.
2. High bending resistance makes carbide tip difficult to be broken.
3. Internal stress removed, deformation will not happen after long time using.
4. We carry out product inspections according to strict standards to ensure a high quanlity product.
5. Can add siencing lines and expansion slots according to customer's requirement.
6. Our high precision finishing process produces blades with superior cutting ability unsurpassed by traditional blades. The lower resistance stabilizes cutting and give a clean cut surface.
Material

Our blades material is 65Mn or 75Cr1, which is good Heat resistance and good wear resistance.

Choose our saw blade:
1. Our main product range is TCT saw blade for aluminum, plywood, acrylic and wood cutting.

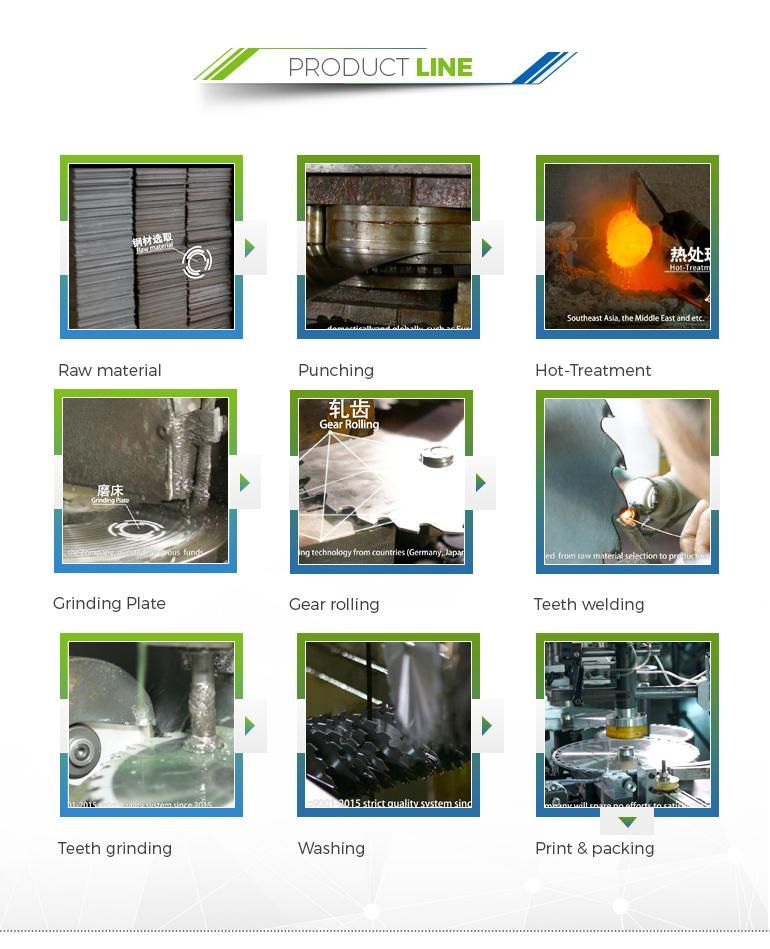

2. We adopt advanced facilities, including importd automatic welding and grinding machines, tension testing and heat-treatment facilities which guarantees our saw blade in high quality.
3. We could control the vertical jump tolerance within 0.03mm, radial jump tolerance within+/-0.03mm to reduce wobbing during working

D(mm)	B/b(mm)	H(mm)	Z
255	2.6/2.1	50	24+2+2
255	2.8/2.2	50	24+2+2
280	2.1/1.6	50	28+2+2
280	2.8/2.2	55	32+2+2
305	2.6/2.0	50	24+2+2
305	2.6/2.1	50	28+2+2
320	2.7/2.1	50	32+2+2
320	3.0/2.4	50	32+2+2
320	3.2/2.5	50	32+2+2
330	2.8/2.1	50	32+2+2
