Din 376 Metric Size HSS Machine Taps
Zhenjiang Scharp Machinery Tools Co., Ltd.- Application：Drilling Machine
- Standard：Standard
- Coating：Uncoated
- Material：High Speed Steel

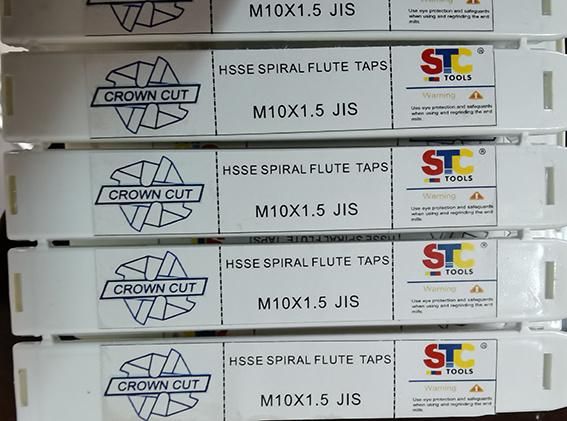

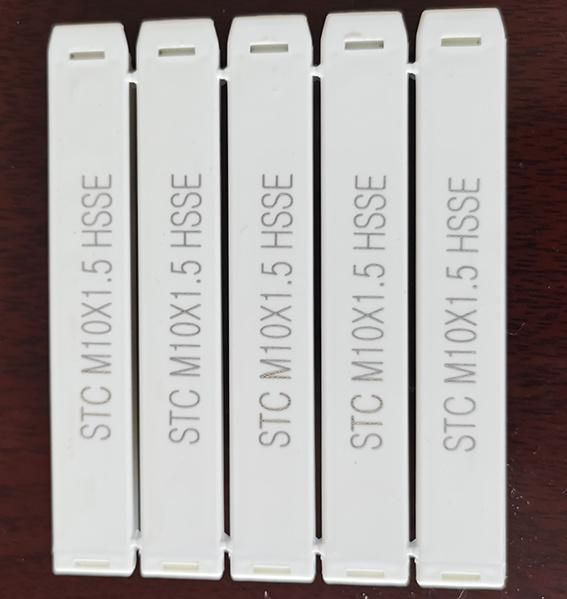

- Transport Package：Plastic Box
- Specification：m3 to m30
Base Info
- Model NO.：Din376 metric size hss machine taps
- Trademark：stc
- Origin：china
- HS Code：82074000
- Production Capacity：20000PCS,Month
Description
Basic Info.
Model NO. Din376 metric size hss machine taps Trademark stc Origin china HS Code 82074000 Production Capacity 20000PCS/MonthProduct Description
MACHINE USE TAP DIN376Straight flute, spiral point and spiral flute 35 degree.
15 degree low spiral flute available on request.
Ground teeth and made from high grades of high speed steel M2.
| d1 | pitch | d2 | sw | l1 | l2 |
| diameter | shank | square | total length | flute length | |
| M2 | 0.4 | 1.4 | 45 | 8 | |
| M2.5 | 0.45 | 1.8 | 50 | 9 | |
| M3 | 0.5 | 2.2 | 56 | 10 | |
| M3.5 | 0.6 | 2.5 | 2.1 | 56 | 12 |
| M4 | 0.7 | 2.8 | 2.1 | 63 | 12 |
| M5 | 0.8 | 3.5 | 2.7 | 70 | 14 |
| M6 | 1 | 4.5 | 3.4 | 80 | 16 |
| M7 | 1 | 5.5 | 4.3 | 80 | 16 |
| M8 | 1.25 | 6 | 4.9 | 90 | 18 |
| M10 | 1.5 | 7 | 5.5 | 100 | 20 |
| M12 | 1.75 | 9 | 7 | 110 | 24 |
| M14 | 2 | 11 | 9 | 110 | 26 |
| M16 | 2 | 12 | 9 | 110 | 26 |
| M18 | 2.5 | 14 | 11 | 125 | 30 |
| M20 | 2.5 | 16 | 12 | 140 | 32 |
| M22 | 2.5 | 18 | 14.5 | 140 | 32 |
| M24 | 3 | 18 | 14.5 | 160 | 36 |
| M27 | 3 | 20 | 16 | 160 | 36 |
| M30 | 3.5 | 22 | 18 | 180 | 40 |
| M33 | 3.5 | 25 | 20 | 180 | 40 |
| M36 | 4 | 28 | 22 | 200 | 50 |
