Center Heights 110, 125, 140, 145, 150mm Universal Nc Dividing Heads
SpecificationsNCDH110NCDH125ANCDH125NCDH140NCDH145NCDH150Center height, mm110125125140145150Diameter of the table surface, mm125160160160160160T-slot width on table surface, mm10H1210H1010H1010H1010H1010H10Worm gear ratio1:901:901:901:901:901:90Diameter of centering bush, mm16H720H720H720H720H720H7D
-
F12 Model Semi Universal Dividing Head
ItemsFB80F12100F12125F12160F12200F12250Center height mm80100125160200250Swivel angle of spindle from its horizontal position (upward)≤90°≤95°Horizontal position(downward)≤6°≤5°Rotating angle of spindle for one complete revolution of dividing handle9°(540grad.,1'each)M
-
Index Fixture Series BS-0 and BS-1 Semi-Universal Dividing Head for Milling Machine
Basic Info. Model NO. BS-0 BS-1
-

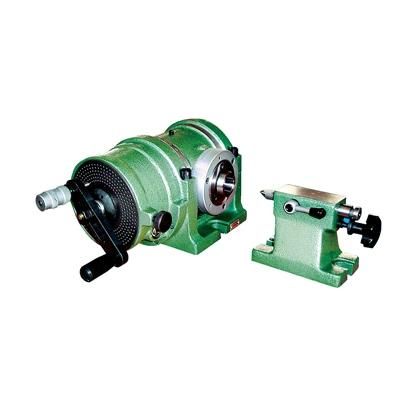

F12 Series Semi-Universal Dividing Head (F12100 F12125 F12160 F12200)
Case Dimensions mm610×459×255536×460×310710×505×342710×535×342DIMENSIONAL SKETCHINSTALLATION SKETCH AND DIMENSIONS:ModelABCDEFGHLMNOPF121001621410287186951161009354.730100100F12125209181169822411712012510368.534.5100125F12160209181169825915212016010368
